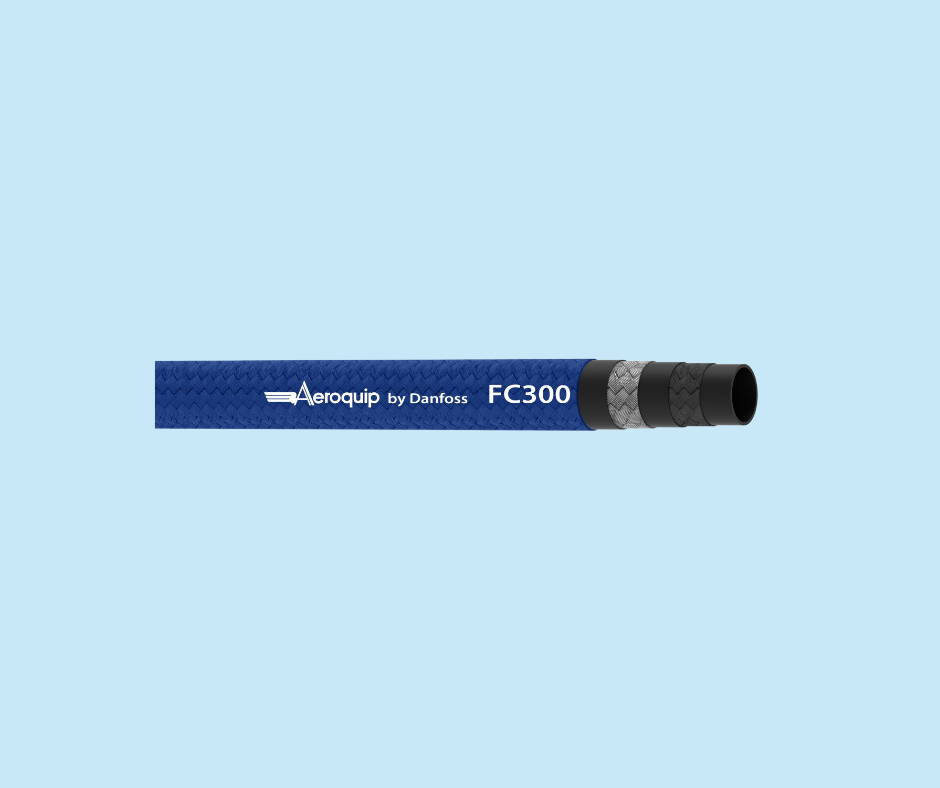

Danfoss FC300-05 engine and fuel hose

Part #- FC300-05

Hose dash size- 5

Hose ID- .250”

Hose OD- .58”

Inner tube construction- AQP

Reinforcement- Polyester inner-braid/ Single steel wire braid

Cover construction- Blue textile cover

Oil operating temperature-  -55°F  +302°F

Air operating temperature- Not to exceed +250°F

Biodiesel operating temperature- Not to exceed +212°F with B2 or B20

Standards meet or exceed- SAE 100R5/ J1402/ J1019/ DOT/ FMVSS 106 Type All

Bend radius-3.38”

Operating pressure- 3,000 PSI

Burst pressure- 12,200 PSI

Compatible fitting series- FJ series/ 100R5 Reusable

Length- 1 ft
