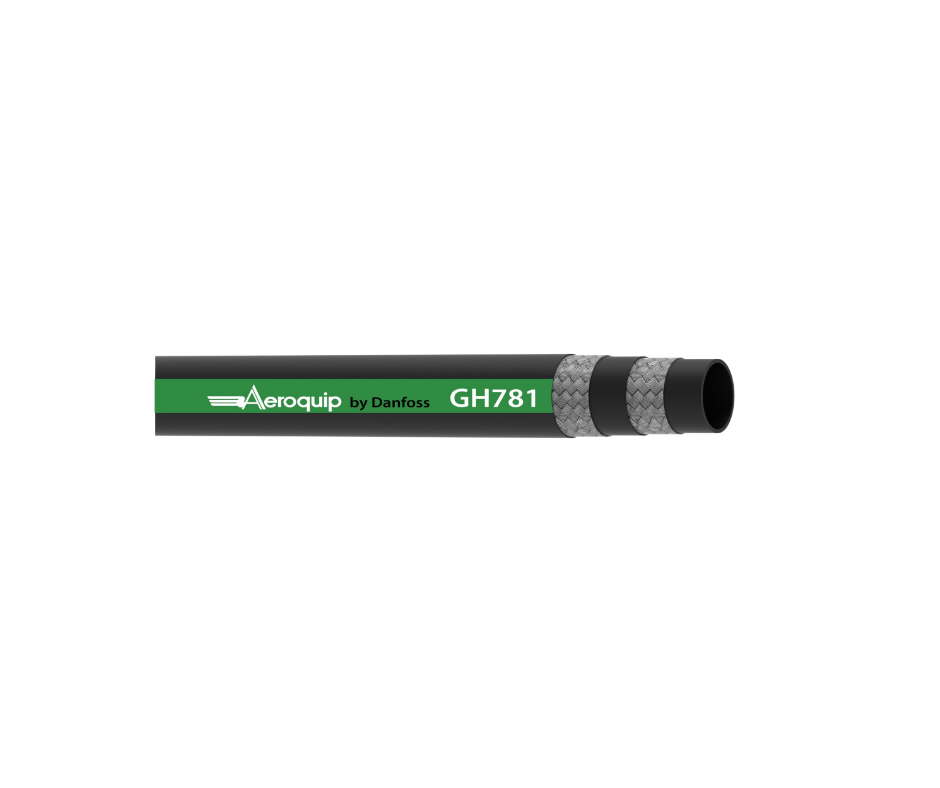

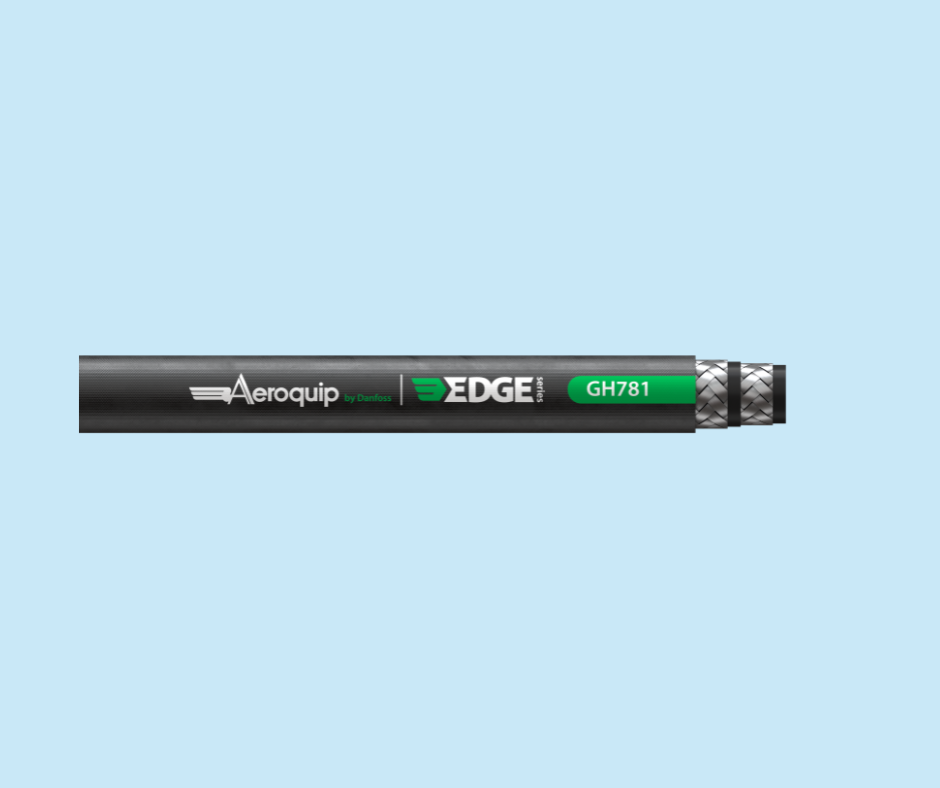

Danfoss GH781-12 hydraulic hose reel

Part #- GH781-12

Hose dash size- 12

Hose ID- .750”

Hose OD- 1.10”

Inner tube construction- Nitrile

Reinforcement- 2-wire braid

Cover construction- Dura-tuff abrasion

Operating temperature-  -50°F  +260°F

Standards meet or exceed- SAE 100R16/ EN 857 2SC/ ISO 18752/ ISO 11237

Bend radius- 4.72”

Operating pressure- 3,500 PSI

Burst pressure- 14,000 PSI

Compatible fitting series- 1A

Length- 250 ft
